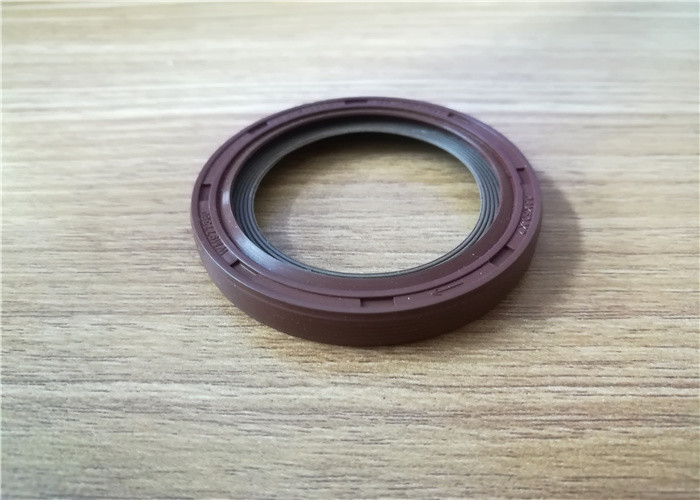

TC Type Oil Lip Seal / Rear Axle Shaft Seal 38*50*7 0 ~ 32Mpa Pressure

Qingdao Global Sealing-tec co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap TC Type Oil Lip Seal / Rear Axle Shaft Seal 38*50*7 0 ~ 32Mpa Pressure from wholesalers

    Buy cheap TC Type Oil Lip Seal / Rear Axle Shaft Seal 38*50*7 0 ~ 32Mpa Pressure from wholesalers
    • Buy cheap TC Type Oil Lip Seal / Rear Axle Shaft Seal 38*50*7 0 ~ 32Mpa Pressure from wholesalers

    TC Type Oil Lip Seal / Rear Axle Shaft Seal 38*50*7 0 ~ 32Mpa Pressure

    Ask Lasest Price
    Certification : ISO-90012000, ISOTS16949
    Payment Terms : L/C, T/T
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    TC Type Oil Lip Seal / Rear Axle Shaft Seal 38*50*7 0 ~ 32Mpa Pressure

    rear axle shaft oil seal TC oil seal 38*50*7, TC type rubber oil seal, nbr rubber oil seal


    Oil Seal Introduction


    Oil seal is one kind of machine element, called Rotating Shaft Seal. Rotating Shaft Seals are used between rotating and nonrotating machine components, to prevent oil leakage. With the development of mechanics, in order to prevent water or chemical liquid and dust and soil, except for oil, to enter inner, oil seal is used in these situations. The equipments with sealing function, besides oil seal, include orings,
    liptype ring, and machine seal. But the most popular one is Rotating Seal for the Rotating shaft sealing.


    Performance of Seals.


    1. Primary Sealing Lip


    The sealing lips are made of flexible elastomer, the sealing function is still effective
    when seals are in the situation of machine vibration and pressure change, meanwhile
    keeping the stability between lip and shaft surface. Besides, springs enhance and keep
    the axile tension of lips.


    2. Secondary Sealing Lip


    Secondary sealing lips prevent dust incursion, no spring.


    3. Outside Surface


    Oil seal is fixed in the hole, Outside surface prevents liquid incursion from the surface
    between oil seal outside surface and hole. Besides, the metal case keeps pressure
    between oil seal and hole.


    Product Overview


    Description38* 50* 7rubber oil seal
    MaterialACM, ,NBR, SILICONE, FKM, PTFE, Iron, ect
    HardnessShore 20-90 A
    TypesB FB BV W FW Z FZ SR DL NY
    Colorbrown, red, black, orange, green, blue, etc
    Applicationauto, trailers, truck, agricultural machineries, etc
    Temperature-45~250°C, The temperature range depends on the material.
    Medium

    water, lube, oil, etc

    SizeCustom Size or stand size
    Pressure0 ~ 32Mpa
    Packingplastic bags inside and carton boxes outside

    TC Type Oil Lip Seal / Rear Axle Shaft Seal 38*50*7 0 ~ 32Mpa Pressure


    Selection of rubber


    RubberNBRACMFKMHNBR
    Property

    Oil resistance
    Heat resistance

    (medium)
    Low temperature

    resistance

    Oil resistance
    Good heat

    resistance

    Oil resistance
    High temperature

    resistance
    Chemicals resistance

    Oil resistance
    High temperature
    resistance
    Chemicals resistance
    Low temperature
    resistance

    Temperature

    range

    -40℃~+120℃-20℃~+150℃-30℃ ~ 200℃-40 ~ +170℃

    Why choose us


    • We have more than 40 years' experience in rubber seal and machined metal parts industry.
    • Research team. R&D for dfferent customer requirement to meet usage requirements.
    • OEM/ODM Service are available. We can design and producets variours Non-standard Rubber Parts according to your requirement.
    • ISO-90012000 and ISOTS16949 certificate.
    • Kinds surface treatment based on customer requirement.
    • All products are 100% inspected before shipment !
