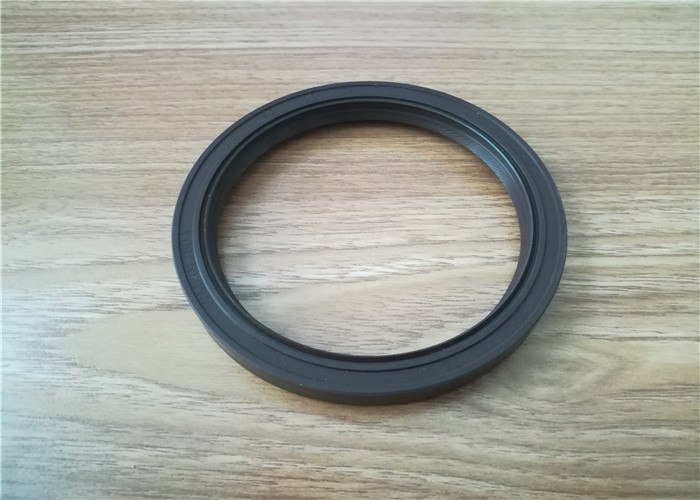

    FKM / EPDM Spring Loaded Double Lip Seal , Rotary Lip Seal Customized Size

    Ask Lasest Price
    Certification : ISO-90012000, ISOTS16949
    Payment Terms : L/C, T/T
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    FKM / EPDM Spring Loaded Double Lip Seal , Rotary Lip Seal Customized Size

    Double Lip FKM l/EPDM /Silicone Oil lip Seal, NBR skeleton oil lip seal, lip seals


    Oil Seal Introduction


    Oil seals – often called grease, fluid or dirt seals – close spaces between stationary and moving components in mechanical equipment, helping prevent lubricant escape. Preventing harmful containments from entering machinery is another critical function of an oil seal. Vital components of practically every type of machine and vehicle in operation, oil seals protect all types of precision-constructed, close-fitting ball, sleeve and roller bearings. In a typical application, the oil seal is installed adjacent to a bearing, sealing in or sealing out, as necessary, the various liquids, gases or solids encountered by the particular mechanism.


    Product Overview


    Descriptionoil lip seals
    MaterialSR, MVQ ,NBR, SILICONE, FKM, PTFE,ect
    HardnessShore 30-90 A
    TypesB FB TB TC BV W FW Z FZ SR DL NY
    Colorblack, red, browm
    Applicationautomobiles, truck, agricultural machineries, trailers, etc
    Temperature-65~300°C, The temperature range depends on the material.
    Oil resistance

    excellent

    SizeAs per drawing dimensions
    Spingspring loaded
    Pakingplastic bags and carton boxes

    FKM / EPDM Spring Loaded Double Lip Seal , Rotary Lip Seal Customized Size


    Common types of oil seals


    Common types of high demond nbr/fkm//fpm oil seals and rubber productss
    TypeCode numberMain featuresUsageDielectric pressure resistanceMaximum line speed
    Simple single lippedBIt is commonly used for high and low speed rotating shafts and reciprocating movement to seal mineral, oil and water.Ordinary high demond nbr/fkm//fpm oil seals and rubber products, in the case of less dust and impurities, the use of medium pressure, the reciprocating speed of <0.1m/s.<0.05MPa15m/s
    Regular lipFBIn addition to the characteristics of the above S type high demond nbr/fkm//fpm oil seals and rubber productss, dust can be prevented.Ordinary high demond nbr/fkm//fpm oil seals and rubber products, with dustproof lips, dustproof, resistant to medium pressure<0.05MPa15m/s
    No spring typeBVSpring free single lip type inner frame type rubber high demond nbr/fkm//fpm oil seals and rubber products.Generally applicable to low-speed conditions, the sealing medium for the lubrication of ester.<0.05MPa6m/s
    Outer skeleton, single lipWWith the spring single lip exposed skeleton rubber high demond nbr/fkm//fpm oil seals and rubber products, waist thin, follow good, good rigidity.Ordinary high demond nbr/fkm//fpm oil seals and rubber products, used in case of less dust and impurities<0.05MPa15m/s
    Outer skeleton, double lipsFWWith the lips of the lips exposed, skeleton rubber high demond nbr/fkm//fpm oil seals and rubber products, waist thin, followed by good, high stiffness, good coaxial.Ordinary high demond nbr/fkm//fpm oil seals and rubber products, with dustproof lips, dustproof, resistant to medium pressure <0.05<0.05MPa15m/s
    Fabricated single lippedZFrom the inside and outside the outer skeleton high demond nbr/fkm//fpm oil seals and rubber products skeleton assembly into piping and installation of high precision, fast heat dissipation, heavy load characteristics.Suitable for heavy load under high temperature and high speed condition<0.05MPa15m/s
    Fabricated double lippedFZThe assembled external skeleton high demond nbr/fkm//fpm oil seals and rubber products with side lip has the characteristics of dust resistance, high installation accuracy, fast heat dissipation and heavy load characteristics.Apply to high temperature, high speed, heavy load under dust condition≤0.05MPa15m/s
    Unidirectional reflux typeDextral SR,Levo DLA diagonal bar with angle in lip air measurement system using fluid mechanics principle, produces pump function, with reflux effect.Because of the backflow effect, the radial force is smaller than that of the ordinary high demond nbr/fkm//fpm oil seals and rubber products, thereby reducing wear and heat build-up and improving service life<0.05MPa20m/s
    Pressure typeNYThe lip is short, stubby waist, with pressure, work pressure is less than 3MPa.The shaft end high demond nbr/fkm//fpm oil seals and rubber products for high pressure pump, general PV value is less than or equal to 8≤3MPa15m/s

    Why choose us


    • We have more than 40 years' experience in rubber seal and machined metal parts industry.
    • Research team. R&D for dfferent customer requirement to meet usage requirements.
    • OEM/ODM Service are available. We can design and producets variours Non-standard Rubber Parts according to your requirement.
    • ISO-90012000 and ISOTS16949 certificate.
    • Kinds surface treatment based on customer requirement.
    • All products are 100% inspected before shipment !
