    Mine Pulverizer PTFE Spring Oil Seal Energized Oil Double Spring Seal

    Ask Lasest Price
    Model Number :
    Certification : ISO-9001:2000, ISOTS16949
    Payment Terms : L/C, T/T
    Delivery Time : 30 days
    • Product Details
    • Company Profile

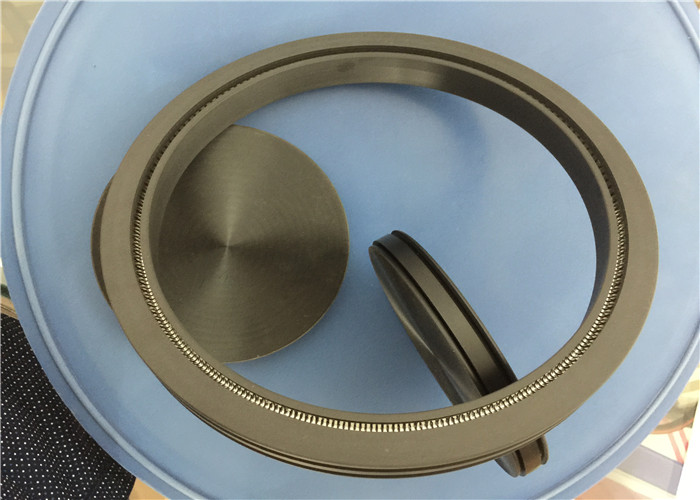

    Mine Pulverizer PTFE Spring Oil Seal Energized Oil Double Spring Seal

    Material information by Custom hydraulic stainless steel PTFE double lip oil seal


    1) PTFE(Polytetrafluoroethylene):


    Display almost universal chemical resistance, an extremely low friction value which results in very good sliding characteristic, no stick-slip effect, particular rigidity and almost unlimited ozone, weathering and ageing resistance, PTFE is impervious to almost all known hydraulic media, lubricants, chemicals and solvents.PTFE is non-flammable and so does not constitute and additional hazard in case of fire. Pure PTFE is not totally without disadvantages as it has a tendency to cold flow or crawl under pressure load. These weaknesses are counteracted by the use of seal compounds mixed with fillers.

    Temperature:-55~+260°C


    2) PTFE types:


    Carbon-graphite filled, Ekonol filled, Rulon®, Glass/MOS2 filled, Fluoroloy 72 (FDA), Gylon white (FDA), Gylon-graphite, other types on request.


    3)Stainless steel:


    Carbon steel, aluminium, SS 304, 316, 316Ti.


    Product Description


    Product namespring energized ptfe oil seal
    MaterialSilicone, NBR, Metal & stainless steel, PTFE, etc.
    ColorBlack, brown, red or as cusomer's requirement
    Mediumhydraulic oil, fire retardant liquid, water, gas
    Samplesavailable
    OEMacceptable
    The application and performance
    low friction and good corrosion resistance. It can work whether if exist lubrication. The installation is very convenience.
    PortQingdao
    CertificateISO-9001:2000, ISOTS16949
    Packing Detailsneutral packing or as your requirement
    StyleD(HTC)
    Stand or nostandstand

    Other oil seal products
    TB oil seal, SB oil seals, SC oil seal, SB oil seals, VC oil seals, VB oil seals, NBR oil seal, FKM/ oil seals, HNBR oil seal, Rubber oil seal, Food grade silicone rubber oil seal, CFW rubber oil seal, Metal oil seal, PTFE oil seal, PU oil seal, ACM oil seal, CR oil seal, Felt oil seal, Inch oil seal, EPDM oil seal, etc.




    Common types of fkm power steering oil sealss
    TypeCode numberMain featuresUsage
    Simple single lippedBIt is commonly used for high and low speed rotating shafts and reciprocating movement to seal mineral, oil and water.Ordinary fkm power steering oil seals, in the case of less dust and impurities, the use of medium pressure, the reciprocating speed of <0.1m/s.
    Regular lipFBIn addition to the characteristics of the above S type fkm power steering oil sealss, dust can be prevented.Ordinary fkm power steering oil seals, with dustproof lips, dustproof, resistant to medium pressure
    No spring typeBVSpring free single lip type inner frame type rubber fkm power steering oil seals.Generally applicable to low-speed conditions, the sealing medium for the lubrication of ester.
    Outer skeleton, single lipWWith the spring single lip exposed skeleton rubber fkm power steering oil seals, waist thin, follow good, good rigidity.Ordinary fkm power steering oil seals, used in case of less dust and impurities
    Outer skeleton, double lipsFWWith the lips of the lips exposed, skeleton rubber fkm power steering oil seals, waist thin, followed by good, high stiffness, good coaxial.Ordinary fkm power steering oil seals, with dustproof lips, dustproof, resistant to medium pressure <0.05
    Fabricated single lippedZFrom the inside and outside the outer skeleton fkm power steering oil seals skeleton assembly into piping and installation of high precision, fast heat dissipation, heavy load characteristics.Suitable for heavy load under high temperature and high speed condition
    Fabricated double lippedFZThe assembled external skeleton fkm power steering oil seals with side lip has the characteristics of dust resistance, high installation accuracy, fast heat dissipation and heavy load characteristics.Apply to high temperature, high speed, heavy load under dust condition
    Unidirectional reflux typeDextral SR,Levo DLA diagonal bar with angle in lip air measurement system using fluid mechanics principle, produces pump function, with reflux effect.Because of the backflow effect, the radial force is smaller than that of the ordinary fkm power steering oil seals, thereby reducing wear and heat build-up and improving service life
    Pressure typeNYThe lip is short, stubby waist, with pressure, work pressure is less than 3MPa.The shaft end fkm power steering oil seals for high pressure pump, general PV value is less than or equal to 8

    FAQ


    1. How to produce?


    we can produce according to seal type and sizes .
    if you need some customized parts, we can produce according to drawing and samples .


    2. How to deliver ?


    for small order, we will deliver by express, such as DHL, FEDEX, UPS,TNT.etc
    for large order , we can deliver by air or by ship.


    3. Are you a trading company or a manufacturer ?


    We are professional manufacturer of various types oil seals, oil seals, o rings, gaksets,

    rubber parts and other rubber, plastic, metal sealing products. Welcome to our factory.


    4.Do you provide samples ? is it free or extra ?


    We can supply you free samples without extra charges, but express cost is for buyer's

    account.


    5.How is the quality?
    Strict control when production, 100% inspection before shipment.
