    High Performance Metal Mechanical Shaft Seal Standard Or Nonstandard

    Ask Lasest Price
    Model Number : 101
    Certification : ISO-9001:2000, ISOTS16949
    Payment Terms : L/C, T/T
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    High Performance Metal Mechanical Shaft Seal Standard Or Nonstandard

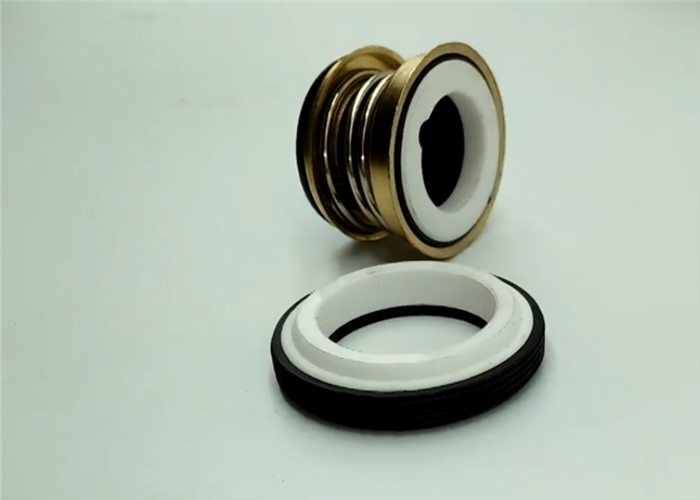

    102 type Stainless steel water pump mechanical seal


    Product Description


    Quick Details
    Standard or Nonstandard:

    Standard Style: Mechanical Seal
    Material: Metal,
    Model number:102
    mechanical seal Pressure: 0~1.2Mpa
    Temperature :-20℃~80℃ (NBR)
    -20 ℃~180 ℃(FPM)
    -80 ℃~250 ℃(PTFE"V" ring)
    Medium: water ,oil and minor corrosive liquid
    Linear velocity:≤ 3000r/min OEM/ODM:YES


    Has the following characteristics:

    1. the sealing performance is good. In the long-term operation, the sealing state is stable and the leakage amount is small.
    2. No adjustment during operation. Suitable for continuous, automated production.
    3.long service life. Generally it can be used continuously for 1-2 years, and special can be used for 5-10 years.

    Operating limits:

    Pressure in the sealed chamber:≤0.3MPa

    Temperature in the sealed chamber:-20℃~80℃(NBR)

    Linear velocity:≤3000r/min

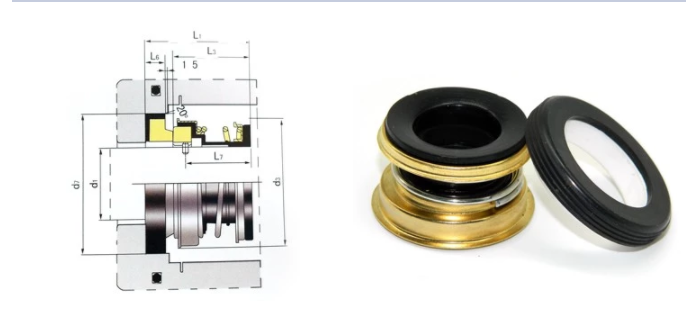

    Unit:mm

    Model
    D1
    D3
    D7
    L1
    L3
    L6
    L7
    102-14
    14
    33
    35
    24.5
    17.5
    5
    13
    102-18
    18
    37
    40
    24.5
    17.5
    5
    13
    102-20
    20
    38
    40
    25
    18
    5
    15

    FAQ


    1. How to produce ?


    we can produce according to seal type and sizes .
    if you need some customized parts, we can produce according to drawing and samples.


    2How to make the order?


    You can send us email or inquiry at alibaba directly.


    3. What is your main market?


    Our main market is north America, UK, Australia, Middle East , Europe.


    4.Do you provide samples ? is it free or extra


    We can supply you free samples without extra charges, but express cost is for buyer's account.


    5.How is the quality?


    Strict control when production, 100% inspection before shipment.


    6.Do you provide samples ? is it free or extra ?


    Yes,with batch order we could offer the sample for free charge but do not pay the cost of freight.
