Precision Rubber Bellows Mechanical Seal 2100 Replacement For John Crane

Ask Lasest Price
Model Number :	2100
Certification :	ISO-9001:2000, ISOTS16949
Payment Terms :	L/C, T/T
Delivery Time :	30 days

Add to Cart

Product Details
Company Profile

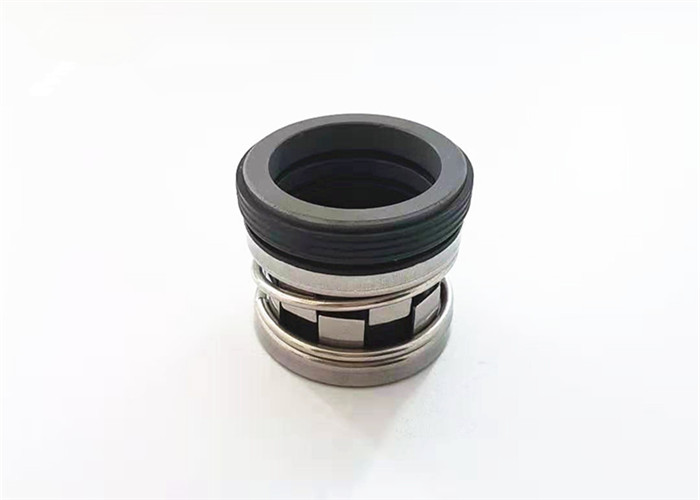

Precision Rubber Bellows Mechanical Seal 2100 Replacement For John Crane

Product Description

Product name	mechanical seal 2100
Work temperature	-40°C to 150°C
Model	2100
Sealing Face	graphite,silicone carbide,tungsten carbide,aluminum oxide,stainless steel
Secondary Seal	acrylonitrile rubber,fluorine rubber,ethylene propylene rubber
Metal component	stainless steel
Liner speed	≤5m/s
Pressure	≤0.3Mpa
Feature	Single and dual seal Short axial installation length Protection of the shaft along the whole length of the seal Material approvals available
Application	Pumps or Others
Color	as request
Medium	Clean water, seawater, gas engine antifreeze
Type	Verious
Port	Qingdao, etc

1.560 mechanical seal is a popular seal for water pump.
2. Size: from 8-50mm
3. Application: working for clean water pump or household pump.
4. Certification: ISO9001, SGS
5. Lepu mechanical seal 560 enjoy a high pulic praise for top its quality.
6 delivery time: 20-25days.
7. lepu seal can offer 560/560a mechanical seal .

d1 Shaft size	d3	L3	L3K	L3N	D7	L4	L28
10	20	15	27.5	35	21	5	6.6
12	22	15	26.5	34	23	6	6.6
14	24	15	29	34	25	6	6.6
15	25	15	29	34	26	6	-
16	26	15	29	34	27	6	6.6
18	32	20	31.5	39	33	6	7.5
20	34	20	31.5	39	35	6	7.5
22	36	20	31.5	39	37	6	7.5
24	38	20	34	44	39	6	7.5
25	39	20	34	44	40	6	7.5
28	42	26	36.5	44	43	6	7.5
30	44	26	35.5	43	45	7	7.5
32	46	26	35.5	48	48	7	7.5
33	47	26	35.5	48	48	7	7.5
35	49	26	34.5	47	50	8	7.5
38	54	30	37	47	56	8	9
40	56	30	37	47	58	8	9
43	59	30	37	52	61	8	9
45	61	30	37	52	63	8	9
48	64	30	35	50	66	10	9
50	66	30	37.5	50	70	10	9.5
53	69	30	37.5	60	73	10	11
55	71	30	37.5	60	75	10	11
58	78	33	42.5	60	78	12	11
60	80	33	40.5	58	80	12	11
63	83	33	40.5	558	83	12	11
65	85	33	40.5	68	85	12	11
68	88	33	40.5	68	90	12	11.3
70	90	33	48	68	92	12	11.3
75	99	40	48	68	97	12	11.3
80	104	40	48	78	105	12	12
85	109	40	48	78	110	12	14
90	114	40	52.5	77.5	115	12.5	14
95	119	40	52.5	77.5	120	12.5	14
100	124	40	52.5	77.5	125	12.5	14

FAQ

1. How to produce ?

we can produce according to seal type and sizes .
if you need some customized parts, we can produce according to drawing and samples.

2How to make the order?

You can send us email or inquiry at alibaba directly.

3. What is your main market?

Our main market is north America, UK, Australia, Middle East , Europe.

4.Do you provide samples ? is it free or extra

We can supply you free samples without extra charges, but express cost is for buyer's account.

5.How is the quality?

Strict control when production, 100% inspection before shipment.

6.Do you provide samples ? is it free or extra ?
Yes,with batch order we could offer the sample for free charge but do not pay the cost of freight.
