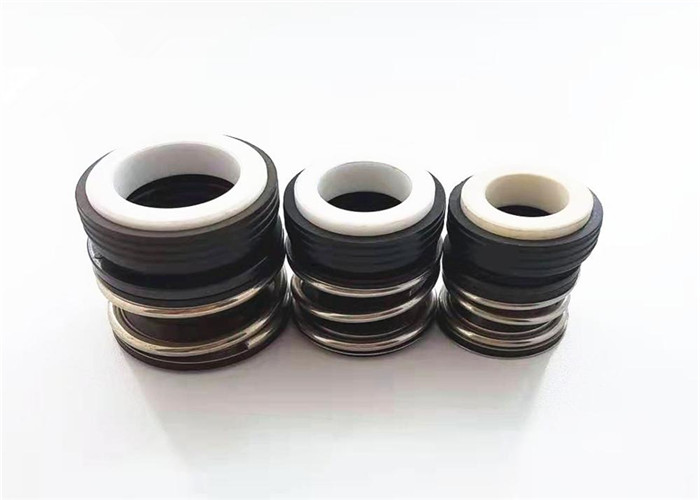

    Short Axial Installation Length Mechanical Shaft Seal WM E Type Standard Size

    Ask Lasest Price
    Model Number : WM E
    Certification : ISO-9001:2000, ISOTS16949
    Payment Terms : L/C, T/T
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    Short Axial Installation Length Mechanical Shaft Seal WM E Type Standard Size

    Mechanical Shaft Seal WM E Type Standard Size


    Product Description

    Product namemechanical seal 2100
    Work temperature-40°C to 150°C
    Model502
    Sealing Facegraphite,silicone carbide,tungsten carbide,aluminum oxide,stainless steel
    Secondary Sealacrylonitrile rubber,fluorine rubber,ethylene propylene rubber
    Metal componentstainless steel
    Liner speed≤5m/s
    Pressure≤0.3Mpa
    Feature

    Single and dual seal

    Short axial installation length

    Protection of the shaft along the whole length of the seal

    Material approvals available

    ApplicationUesd in different pumps, conpressors,suto-cooling machine,mixer and other rotating equipment which apply to wate,oil and other corrosive solutions
    Coloras request
    MediumClean water, seawater, gas engine antifreeze
    TypeVerious
    PortQingdao, etc

    Mechanical seal: WM 303-3/4''

    Pressure: ≤ 0.7Mpa

    Temperature: -20oC~100oC

    Linear speed: ≤ 10m/sec

    Ued in the centrifugal pumps,in-line pumps and general industrial pumps

    Structure drawing of WM 303-3/4'' mechanical seal






    modelD1D3D7LL3L4
    WM E-3/8"9.532422.22316.76.3
    WM E-1/2"12.72725.426.318.38
    WM E-5/8"15.883131.75/(30)28.6/(27)18.310.3/(8.7)
    WM E-3/4"19.053434.9528.6/(27)18.310.3
    WM E-1"25.44341.331.720.711
    WM E-5/8H15.883131.75/(30)30.119.810.3
    WM E-3/4H19.053434.9530.119.810.3

    FAQ

    1. How to produce ?

    we can produce according to seal type and sizes .
    if you need some customized parts, we can produce according to drawing and samples.


    2How to make the order?

    You can send us email or inquiry at alibaba directly.

    3. What is your main market?

    Our main market is north America, UK, Australia, Middle East , Europe.

    4.Do you provide samples ? is it free or extra

    We can supply you free samples without extra charges, but express cost is for buyer's account.

    5.How is the quality?

    Strict control when production, 100% inspection before shipment.

    6.Do you provide samples ? is it free or extra ?
    Yes,with batch order we could offer the sample for free charge but do not pay the cost of freight.
