    Single / Dual Seal JMK Type Water Pump Seals Stainless Steel Component

    Ask Lasest Price
    Model Number : JMK
    Certification : ISO-9001:2000, ISOTS16949
    Payment Terms : L/C, T/T
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    Single / Dual Seal JMK Type Water Pump Seals Stainless Steel Component

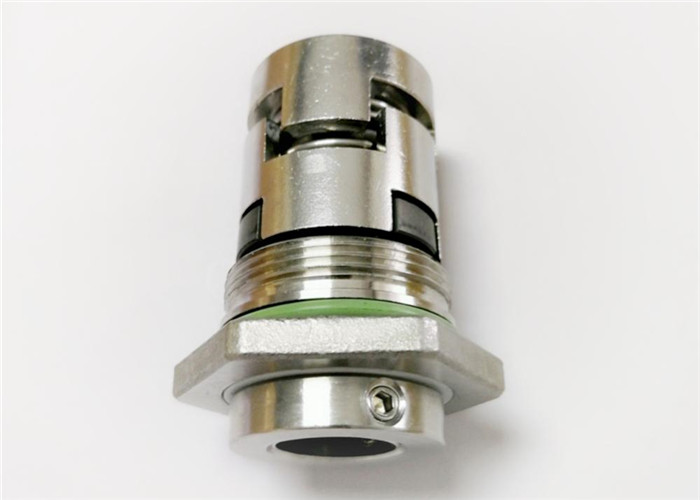

    JMK Type water pump seals


    Product Description

    Product nameJMK mechanical seal
    Work temperature-40°C to 150°C
    ModelJMK
    Sealing Facegraphite,silicone carbide,tungsten carbide,aluminum oxide,stainless steel
    Secondary Sealacrylonitrile rubber,fluorine rubber,ethylene propylene rubber
    Metal componentstainless steel
    Liner speed≤5m/s
    Pressure≤0.3Mpa
    Feature

    Single and dual seal

    Short axial installation length

    Protection of the shaft along the whole length of the seal

    Material approvals available

    ApplicationUesd in different pumps, conpressors,suto-cooling machine,mixer and other rotating equipment which apply to wate,oil and other corrosive solutions
    Coloras request
    MediumClean water, seawater, gas engine antifreeze
    TypeVerious
    PortQingdao, etc

    Mechanical seal:WMJMK


    Pressure in the sealed chamber: ≤3MPa

    Temperature in the sealed chamber:-30℃~180 ℃

    Linear velocity:≤15m/sec

    Used in water pump and circulation water pump

    mediums: water, oil and wekly-corrosive mediums.
    temperature: -20℃--150℃
    pressure: ≤1.2MPa
    speed: ≤10m/Sec
    Stationary Ring(Ceramic/SiC/TC)Rotary Ring(Carbon/SiC)
    secondary seal(NBR/EPDM/)
    Spring and punched parts(steel)



    MdelD1D3D7MLL1L3
    WM GLF-12122529M28*1.5554930
    WM GLF-161630.534M33*1.557.55130.5
    WM GLF-222239.550M49*1.5725535

    FAQ

    1. How to produce ?

    we can produce according to seal type and sizes .
    if you need some customized parts, we can produce according to drawing and samples.


    2How to make the order?

    You can send us email or inquiry at alibaba directly.

    3. What is your main market?

    Our main market is north America, UK, Australia, Middle East , Europe.

    4.Do you provide samples ? is it free or extra

    We can supply you free samples without extra charges, but express cost is for buyer's account.

    5.How is the quality?

    Strict control when production, 100% inspection before shipment.

    6.Do you provide samples ? is it free or extra ?
    Yes,with batch order we could offer the sample for free charge but do not pay the cost of freight.
