    Type 70 Blower Spring Mechanical Seal Customized Size For Dyeing Machines

    Ask Lasest Price
    Model Number : 70
    Certification : ISO-9001:2000, ISOTS16949
    Payment Terms : L/C, T/T
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    Type 70 Blower Spring Mechanical Seal Customized Size For Dyeing Machines

    166/166 T Mechanical Seal, Ceramic Ring For Water Pump Seals, 166 O-Ring Single Spring Mechanical pump Seal


    Product Description

    O-Ring Single Spring Mechanical pump Seal Operating limits

    Temperature: -30°C to +200°C
    Pressure: ≤1Mpa
    Speed: ≤10/s


    O-Ring Single Spring Mechanical pump Seal Material

    Stationary Ring (Ceramic/SiC/TC)
    Rotary Ring (Plastic Carbon/Carbon/SiC/TC)
    Secondary Seal (NBR/EPDM/FKM)
    Spring & Other Parts (SS304/SS316)


    O-Ring Single Spring Mechanical pump Seal Description

    Widely used in water pump, submerged pump and chemical pumps , etc.

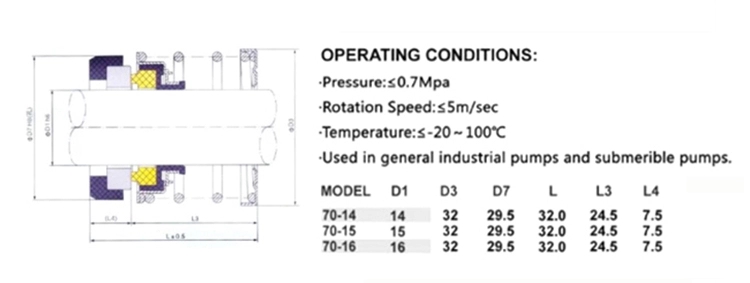

    O-Ring Single Spring Mechanical pump Seal Drawing and Dimension


    Product name 58Umechanical seal
    Model166
    MaterialSeat: ceramic,sic,tc
    Rotary: carbon, sic,tv
    Rubber: NBR, EDPM,,
    Metal: SS
    Size8~85mm or customized
    Working ConditionTemperature: -40°C to +250°C
    depending on materials used
    Pressure: up to 17 bar g/250psig
    Speed: Up to 25m/s/5000fpm
    multi-spring with screw
    Mediums: Petroleum, chemical solvents, weak and medium acids, etc.
    Material:
    Feature

    Single and dual seal

    Short axial installation length

    Protection of the shaft along the whole length of the seal

    Material approvals available

    Applicationworking for clean water pump or household pump.
    Coloras request
    TypeVerious
    PortQingdao, etc



    Common dimensions



    More size, pls contact us


    FAQ

    1. How to produce ?

    we can produce according to seal type and sizes .
    if you need some customized parts, we can produce according to drawing and samples.


    2How to make the order?

    You can send us email or inquiry at alibaba directly.

    3. What is your main market?

    Our main market is north America, UK, Australia, Middle East , Europe.

    4.Do you provide samples ? is it free or extra

    We can supply you free samples without extra charges, but express cost is for buyer's account.

    5.How is the quality?

    Strict control when production, 100% inspection before shipment.

    6.Do you provide samples ? is it free or extra ?
    Yes,with batch order we could offer the sample for free charge but do not pay the cost of freight.
