Double Face Bellow Mechanical Shaft Seal High Performance For Household Pump

Qingdao Global Sealing-tec co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Double Face Bellow Mechanical Shaft Seal High Performance For Household Pump from wholesalers

    Buy cheap Double Face Bellow Mechanical Shaft Seal High Performance For Household Pump from wholesalers
    • Buy cheap Double Face Bellow Mechanical Shaft Seal High Performance For Household Pump from wholesalers
    • Buy cheap Double Face Bellow Mechanical Shaft Seal High Performance For Household Pump from wholesalers
    • Buy cheap Double Face Bellow Mechanical Shaft Seal High Performance For Household Pump from wholesalers

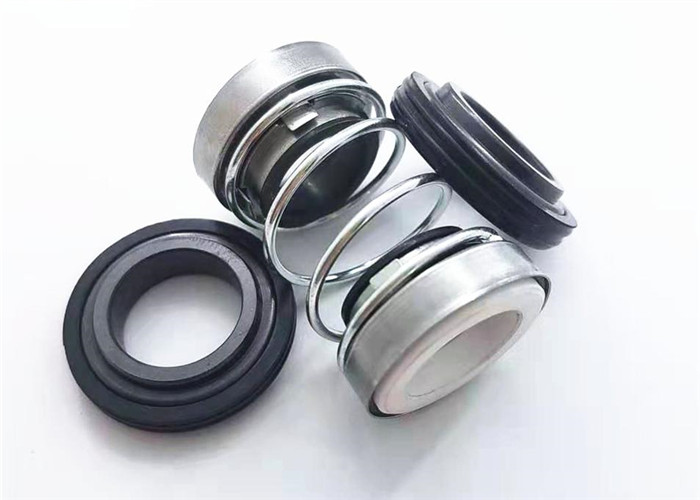

    Double Face Bellow Mechanical Shaft Seal High Performance For Household Pump

    Ask Lasest Price
    Model Number : 202
    Certification : ISO-9001:2000, ISOTS16949
    Payment Terms : L/C, T/T
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    Double Face Bellow Mechanical Shaft Seal High Performance For Household Pump

    202 Double Face Bellow Mechanical Seal, WATER PUMP MECHANICAL SEALS SHAFT SEAL TYPE 202


    Product Description

    Operating limits:

    Pressure in the sealed chamber: -0.05≤P≤0.16MPa

    Temperature in the sealed chamber:-20℃~80℃

    Linear velocity: ≤3000r/min

    Medium: Acid, Alkali, Oil and Macromolecule suspend medium


    Product name 58Umechanical seal
    Model166
    MaterialSeat: ceramic,sic,tc
    Rotary: carbon, sic,tv
    Rubber: NBR, EDPM,,
    Metal: SS
    Size8~85mm or customized
    Working ConditionTemperature: -40°C to +250°C
    depending on materials used
    Pressure: up to 17 bar g/250psig
    Speed: Up to 25m/s/5000fpm
    multi-spring with screw
    Mediums: Petroleum, chemical solvents, weak and medium acids, etc.
    Material:
    Feature

    Single and dual seal

    Short axial installation length

    Protection of the shaft along the whole length of the seal

    Material approvals available

    Applicationworking for clean water pump or household pump.
    Coloras request
    TypeVerious
    PortQingdao, etc




    Common dimensions


    ModelD1 (h6)D7 (h8)L10 (+-0.5)
    202-141426/2835/38/42
    202-16162838/45
    202-171734/3538/43/48
    202-181834/3538/43/48
    202-20203640/42/47
    202-22223845
    202-25254151
    202-30304651
    202-35355151
    202-40406061
    202-45456561

    More size, pls contact us


    FAQ

    1. How to produce ?

    we can produce according to seal type and sizes .
    if you need some customized parts, we can produce according to drawing and samples.


    2How to make the order?

    You can send us email or inquiry at alibaba directly.

    3. What is your main market?

    Our main market is north America, UK, Australia, Middle East , Europe.

    4.Do you provide samples ? is it free or extra

    We can supply you free samples without extra charges, but express cost is for buyer's account.

    5.How is the quality?

    Strict control when production, 100% inspection before shipment.

    6.Do you provide samples ? is it free or extra ?
    Yes,with batch order we could offer the sample for free charge but do not pay the cost of freight.
