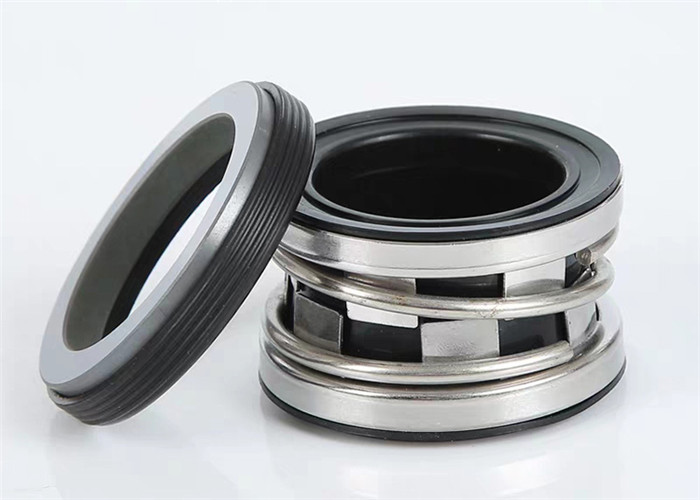

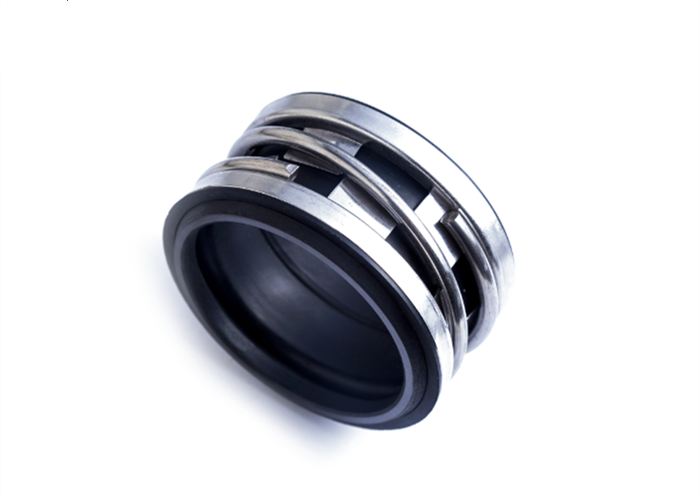

    John Crane Type 2100 Mechanical Seal Parts Single And Dual Seal Lightweight

    Ask Lasest Price
    Model Number : 2100
    Certification : ISO-9001:2000, ISOTS16949
    Payment Terms : L/C, T/T
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    John Crane Type 2100 Mechanical Seal Parts Single And Dual Seal Lightweight

    202 Double Face Bellow Mechanical Seal, WATER PUMP MECHANICAL SEALS SHAFT SEAL TYPE 202


    Product Description

    Operationar Conditions:

    Pressure: <=0.8Mpa

    Temperature: -20 - 150ºC

    Linear velocity: <=10m/s


    Mediums: water, oil, acids, alkali with low corrosion, etc.

    Size: 14mm to 100 in metric available.


    Specifications

    1 Elastomer bellows mechanical seal
    2 John Crane mechanical seal type2100
    3 For water, oil ect. weak corrosive


    Product name 58Umechanical seal
    Model2100
    MaterialSeat: ceramic,sic,tc
    Rotary: carbon, sic,tv
    Rubber: NBR, EDPM,,
    Metal: SS
    Size8~85mm or customized
    Working ConditionTemperature: -40°C to +250°C
    depending on materials used
    Pressure: up to 17 bar g/250psig
    Speed: Up to 25m/s/5000fpm
    multi-spring with screw
    Mediums: Petroleum, chemical solvents, weak and medium acids, etc.
    Material:
    Feature

    Single and dual seal

    Short axial installation length

    Protection of the shaft along the whole length of the seal

    Material approvals available

    Applicationworking for clean water pump or household pump.
    Coloras request
    TypeVerious
    PortQingdao, etc

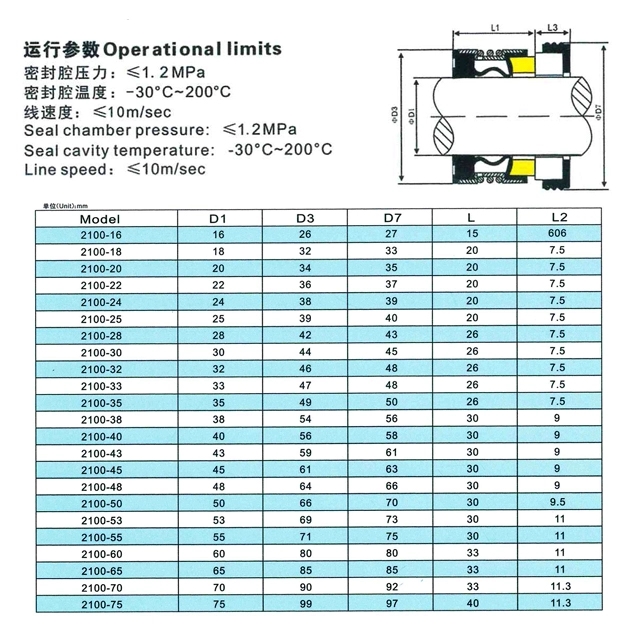

    Common dimensions



    More size, pls contact us


    FAQ

    1. How to produce ?

    we can produce according to seal type and sizes .
    if you need some customized parts, we can produce according to drawing and samples.


    2How to make the order?

    You can send us email or inquiry at alibaba directly.

    3. What is your main market?

    Our main market is north America, UK, Australia, Middle East , Europe.

    4.Do you provide samples ? is it free or extra

    We can supply you free samples without extra charges, but express cost is for buyer's account.

    5.How is the quality?

    Strict control when production, 100% inspection before shipment.

    6.Do you provide samples ? is it free or extra ?
    Yes,with batch order we could offer the sample for free charge but do not pay the cost of freight.
