    Unbalanced Mechanical Seal Parts Single Face Rubber Bellows For Clean Water Pump

    Ask Lasest Price
    Model Number : 156
    Certification : ISO-9001:2000, ISOTS16949
    Payment Terms : L/C, T/T
    Delivery Time : 30 days
    • Product Details
    • Company Profile

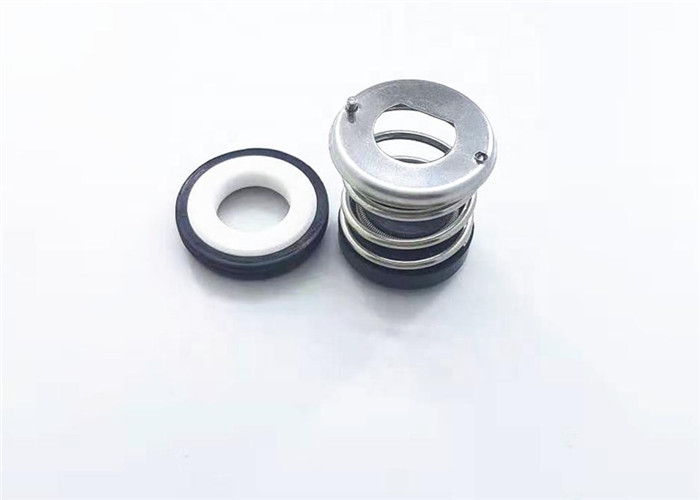

    Unbalanced Mechanical Seal Parts Single Face Rubber Bellows For Clean Water Pump

    156 Type Domestic Water Pump Seal, Home Pump Seals, 156 Clean Water Pump Mechanical Seal


    Product Description

    Design Structure:
    1. Dependent on the direction of rotation
    2. Single face
    3. Unbalanced
    4. Rubber bellows
    Operating limits:
    1. Pressure:<=0.8Mpa
    2. Temperature: -20°C-150°C
    3. Linear speed: <=10m/s
    4. Shaft size: 10-100mm
    5. Medium: oil, wastewater, water and other weak corrosive medium.
    Combination of materials
    Sealing face: Graphite, Silicon carbide, ceramic, hard alloy
    Secondary Sealing: Fluorine rubber, acylonitrile rubber, ethylene-propylene rubber
    Mental component: 304,316L

    Product name 58Umechanical seal
    ModelWM 108
    MaterialSeat: ceramic,sic,tc
    Rotary: carbon, sic,tv
    Rubber: NBR, EDPM,,
    Metal: SS
    Size8~85mm or customized
    Working ConditionTemperature: -40°C to +250°C
    depending on materials used
    Pressure: up to 17 bar g/250psig
    Speed: Up to 25m/s/5000fpm
    multi-spring with screw
    Mediums: Petroleum, chemical solvents, weak and medium acids, etc.
    Material:
    Feature

    Single and dual seal

    Short axial installation length

    Protection of the shaft along the whole length of the seal

    Material approvals available

    ApplicationUesd in different pumps, conpressors,suto-cooling machine,mixer and other rotating equipment which apply to wate,oil and other corrosive solutions
    Coloras request
    TypeVerious
    PortQingdao, etc

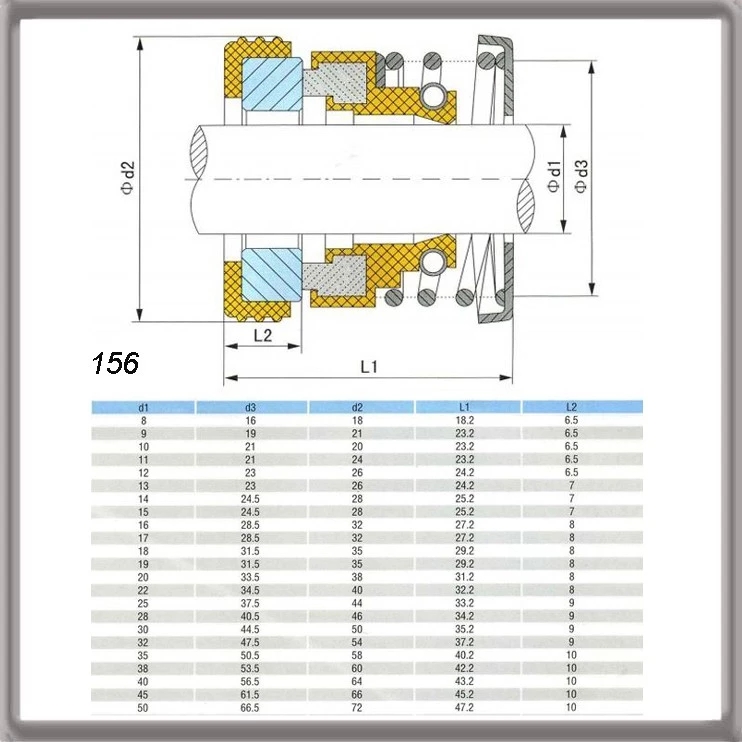

    Common dimensions


    More size, pls contact us





    FAQ

    1. How to produce ?

    we can produce according to seal type and sizes .
    if you need some customized parts, we can produce according to drawing and samples.


    2How to make the order?

    You can send us email or inquiry at alibaba directly.

    3. What is your main market?

    Our main market is north America, UK, Australia, Middle East , Europe.

    4.Do you provide samples ? is it free or extra

    We can supply you free samples without extra charges, but express cost is for buyer's account.

    5.How is the quality?

    Strict control when production, 100% inspection before shipment.

    6.Do you provide samples ? is it free or extra ?
    Yes,with batch order we could offer the sample for free charge but do not pay the cost of freight.
