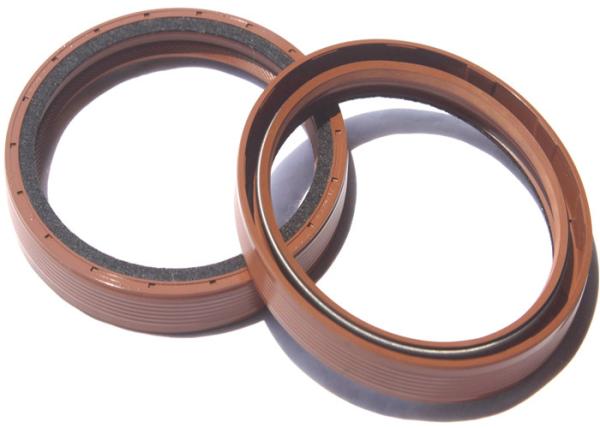

    22mm Spring Energized PTFE 0.05MPa Rubber Oil Seal

    0.05MPa rubber oil seal


    Oil seal:
    The oil seal is also called a rotating shaft seal. They are often referred to as grease, fluid seal or dirt seal. Oil seal is an indispensable part of any rotating and moving component assembly. They close the space between the fixed and moving parts of the mechanical equipment. In most applications, especially in engines, transmissions, gearboxes or axles, the seals are either partially or temporarily immersed, or only exposed to splashing lubricant. They are an important part of almost all machines and vehicles in operation. Oil seals usually consist of three basic components: sealing element (rubber part), metal casing and spring. It is a widely used sealing component. The function of the seal is to prevent the medium from leaking along the moving parts. This is mainly achieved through sealing elements.

    Product Description


    Product namespring energized ptfe oil seal
    MaterialSilicone, NBR, Metal & stainless steel, PTFE, etc.
    ColorBlack, brown, red or as cusomer's requirement
    Mediumhydraulic oil, fire retardant liquid, water, gas
    Samplesavailable
    OEMacceptable
    The application and performance
    low friction and good corrosion resistance. It can work whether if exist lubrication. The installation is very convenience.
    PortQingdao
    CertificateISO-9001:2000, ISOTS16949
    Packing Detailsneutral packing or as your requirement
    StyleD(HTC)
    Stand or nostandstand
    Advantages
    Very good static seal
    Good thermal expansion compensation
    Shell allows greater roughness
    Reduce the risk of corrosion
    Sealing of low and high viscosity fluids
    Medium main sealing lip, small radial force
    Prevent harmful air pollutants

    Common types of fkm power steering oil sealss
    TypeCode numberMain featuresUsage
    Simple single lippedBIt is commonly used for high and low speed rotating shafts and reciprocating movement to seal mineral, oil and water.Ordinary fkm power steering oil seals, in the case of less dust and impurities, the use of medium pressure, the reciprocating speed of <0.1m/s.
    Regular lipFBIn addition to the characteristics of the above S type fkm power steering oil sealss, dust can be prevented.Ordinary fkm power steering oil seals, with dustproof lips, dustproof, resistant to medium pressure
    No spring typeBVSpring free single lip type inner frame type rubber fkm power steering oil seals.Generally applicable to low-speed conditions, the sealing medium for the lubrication of ester.
    Outer skeleton, single lipWWith the spring single lip exposed skeleton rubber fkm power steering oil seals, waist thin, follow good, good rigidity.Ordinary fkm power steering oil seals, used in case of less dust and impurities
    Outer skeleton, double lipsFWWith the lips of the lips exposed, skeleton rubber fkm power steering oil seals, waist thin, followed by good, high stiffness, good coaxial.Ordinary fkm power steering oil seals, with dustproof lips, dustproof, resistant to medium pressure <0.05
    Fabricated single lippedZFrom the inside and outside the outer skeleton fkm power steering oil seals skeleton assembly into piping and installation of high precision, fast heat dissipation, heavy load characteristics.Suitable for heavy load under high temperature and high speed condition
    Fabricated double lippedFZThe assembled external skeleton fkm power steering oil seals with side lip has the characteristics of dust resistance, high installation accuracy, fast heat dissipation and heavy load characteristics.Apply to high temperature, high speed, heavy load under dust condition
    Unidirectional reflux typeDextral SR,Levo DLA diagonal bar with angle in lip air measurement system using fluid mechanics principle, produces pump function, with reflux effect.Because of the backflow effect, the radial force is smaller than that of the ordinary fkm power steering oil seals, thereby reducing wear and heat build-up and improving service life
    Pressure typeNYThe lip is short, stubby waist, with pressure, work pressure is less than 3MPa.The shaft end fkm power steering oil seals for high pressure pump, general PV value is less than or equal to 8

    Seals can be used in various equipment in the following industries:
    • Cars.
    • Manufacturing.
    • Off-road.
    • Oil refinery.
    • Power transmission.
    Sample applications include:
    • Industrial pumps.
    • Electric motor.
    • Compressor and vacuum pump.
    • Engine seals.
    • Agricultural machinery seals.
    • Household appliances
